Flowkeeper

Team Size: 12 ⏱️ 9 months 🎭 Programmer

Team Lead of the graduation project, initially a Serious Game about the water management (and wastes). After many iterations looking for the fun, I decided to shift it to a Puzzle Game while using most of the implemented game mechanics.

  1. Duration: 9 month (Sept 2024 - May 2025)
  2. Role(s): Programmer, Team Lead (Concept Creator)
  3. Team Size: 12 (4 Game Designers, 4 Concept Artists, 1 3D Artist, 1 Narrative Designer, 2 Sound Designers)
  4. Engine & Platform: Unreal Engine 5.4, Windows

Game Overview

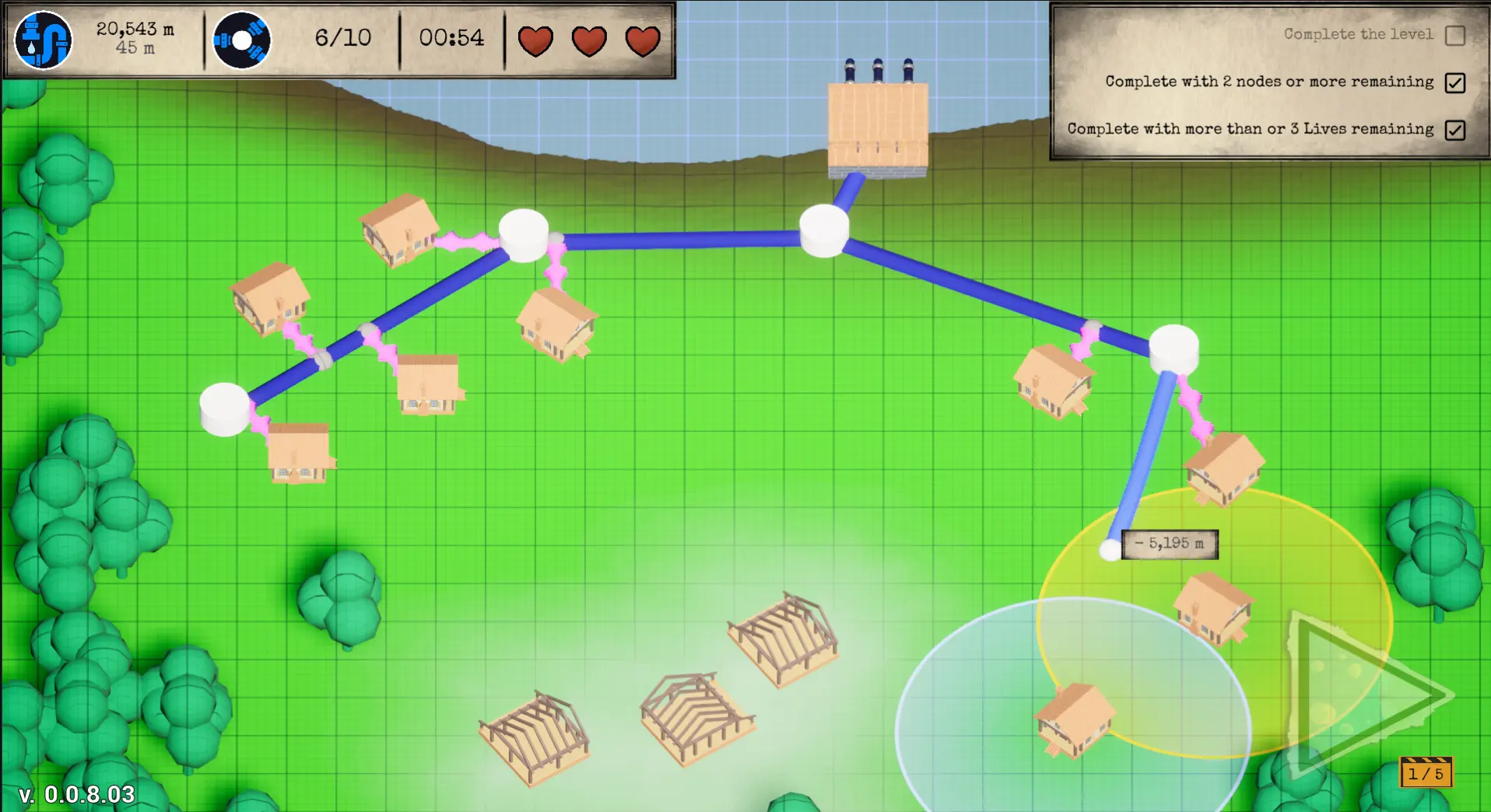

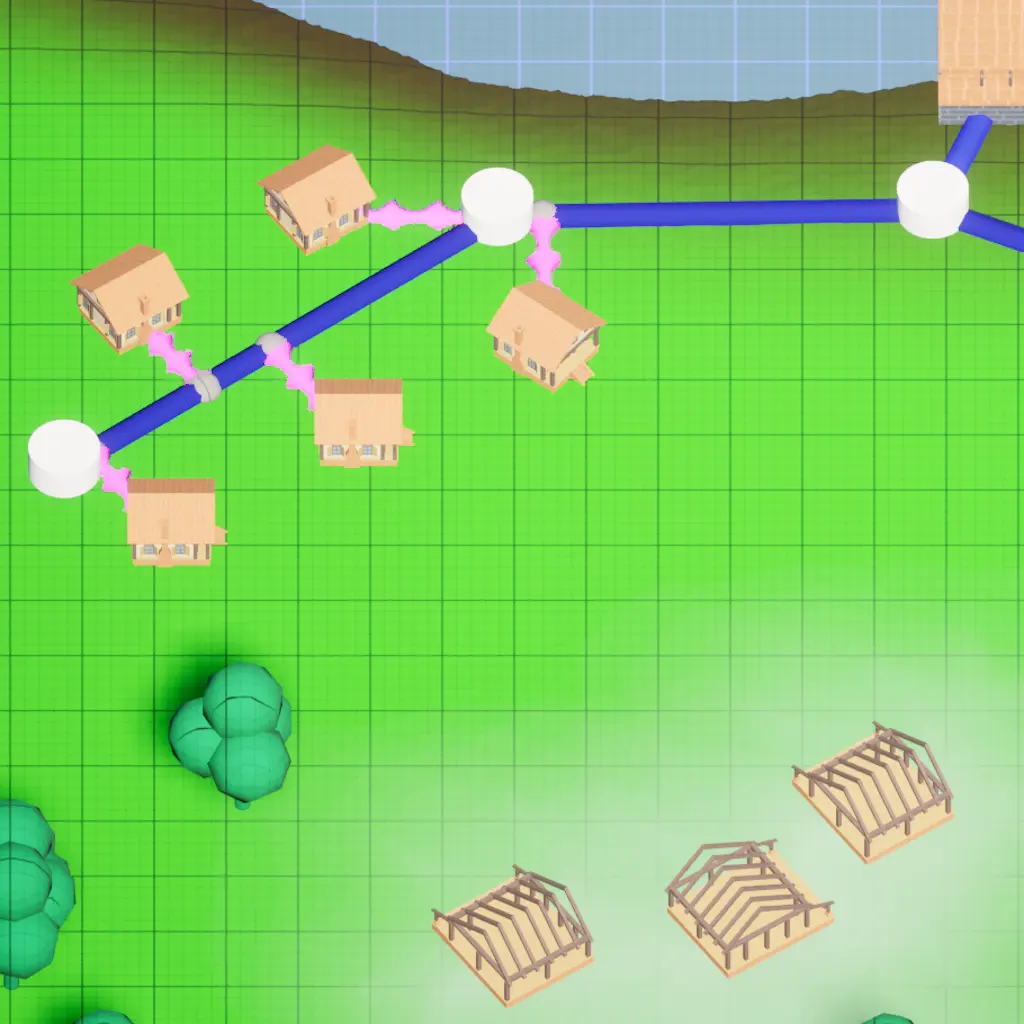

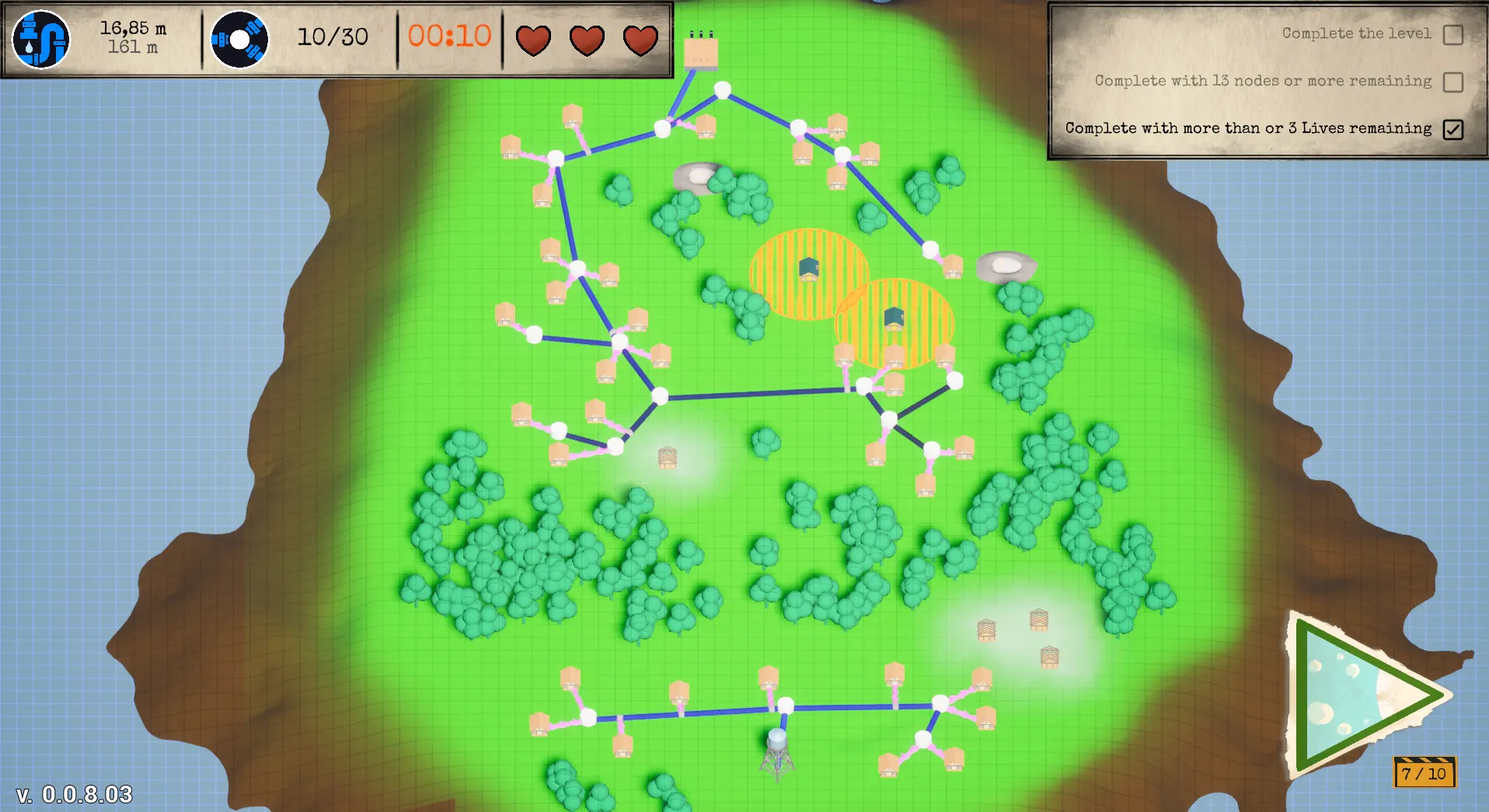

The player must distribute efficiently the water across a growing city by making a pipe network and managing wisely its resources to build it.
The more water you use, the drier the land becomes.

Project's Origins

The game's origin is from a Game Concept I've presented at the end of my 2nd Year and it has been selected out of 14 other game concept.
I wanted to build a game that make the player aware of the water uses and wastes in cities.

Tool I used:

UE iconUE iconUE iconUE icon

I. Data Assets

Problem: Large project with 4+ people working on the engine simultaneously, requiring an efficient and easy-to-use structure.

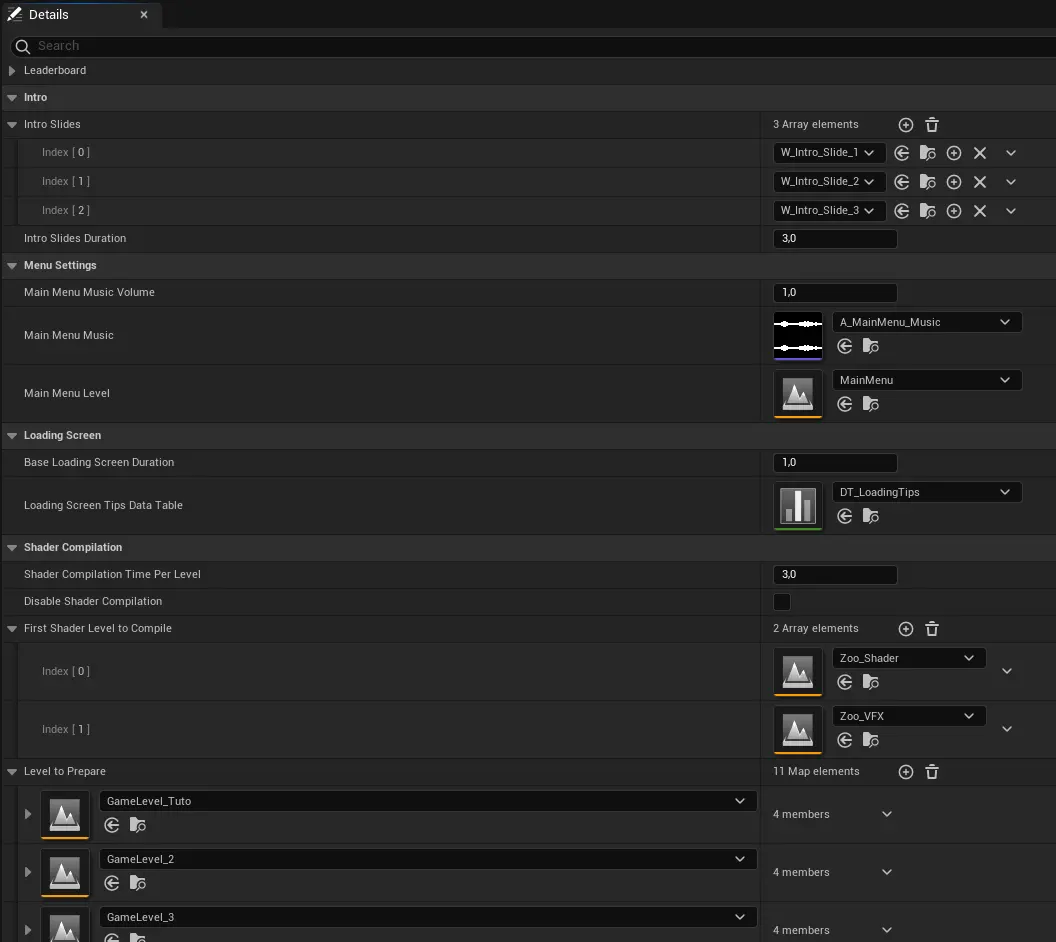

Game Config

Solution: I've setup a Data Asset to control the game's core settings:

  • Intro slides (splash screens)
  • Main Menu Level (& Music)
  • Loading Tips Data Table to use
  • Level Manager

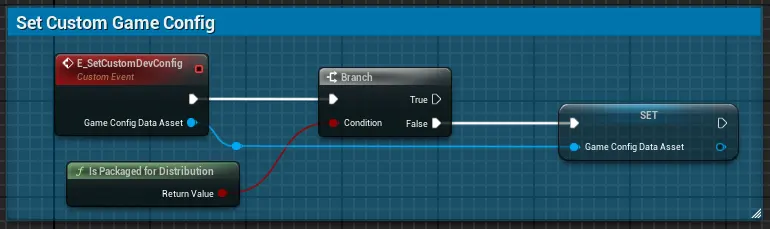

I also enabled designers to test custom games configurations in their Dev Folders via a "Custom Dev Config" node, which overrides the default Game Config Data asset when launching their custom launcher.

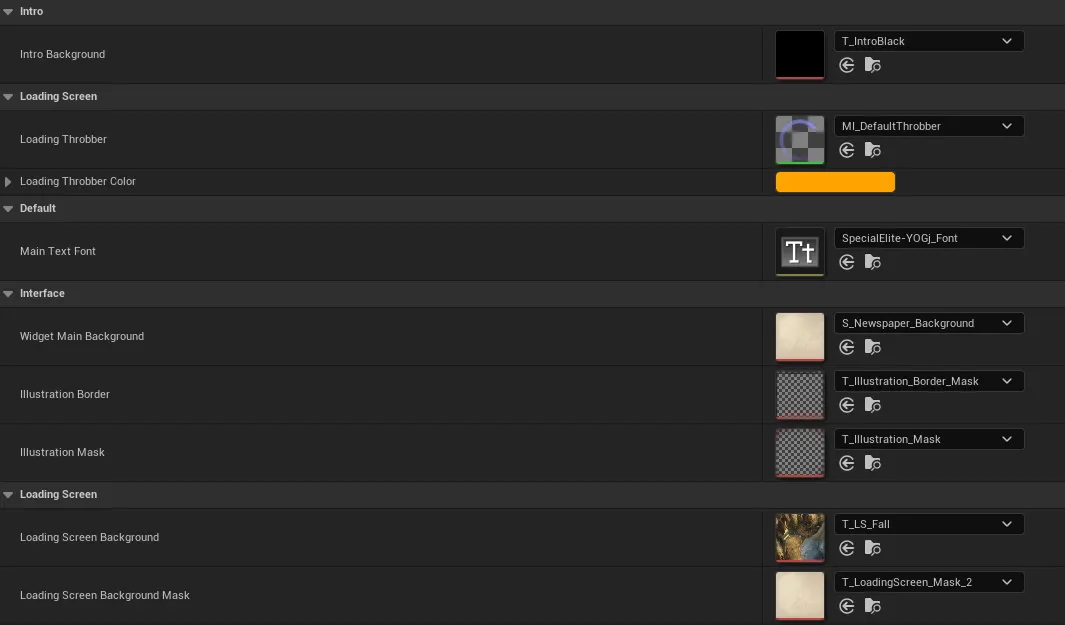

Menu Config

Solution: I created a Data Asset similar to the Game Config for the User Interfaces: this allow for centralized UI management, simplifying changes to elements like:

  • Background
  • Font
  • Loading Throbber
  • Default Loading Screen

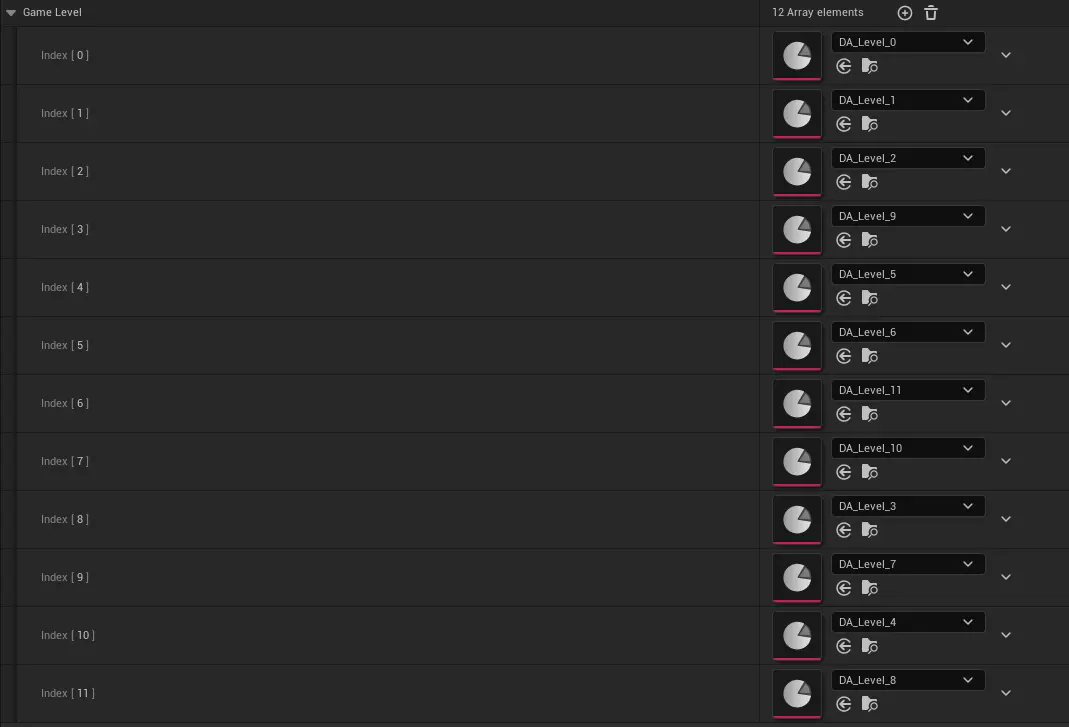

Level Management

Problem: The game requires multiple levels sorted by difficulty, determined through playtests.

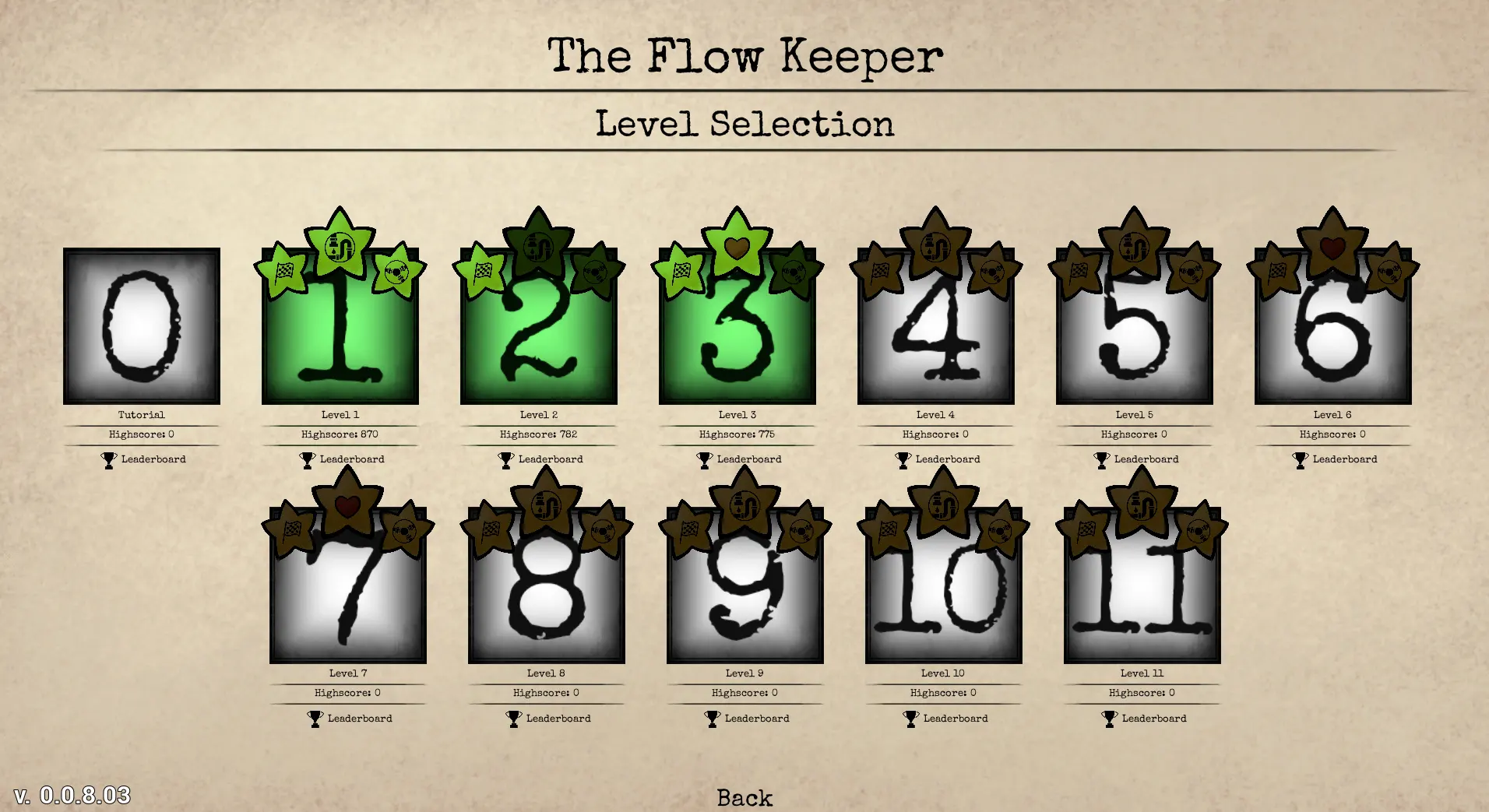

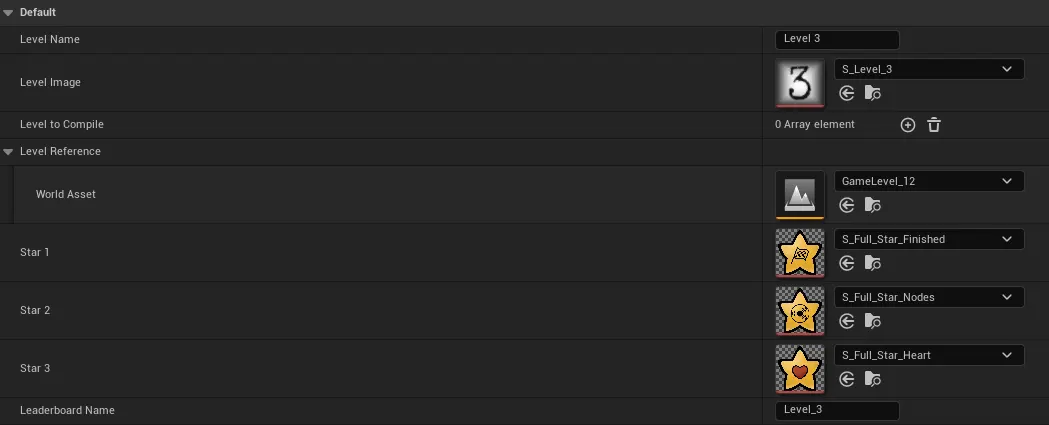

Solution: I created special Level Data Asset to store level information, and are then managed inside the Game Config Data Asset. This enables designers to sort levels dynamically, automatically updating the "Level Selection" interface.

I'm considering using the Asset Registry to automate the entire process, removing the need for manual designer actions.

Bonus: I manage level references using Soft World References instead of level names, making them more visual and easier for designers to manipulate.

II. Level Editor

Problem: The team sometimes works on the same level, editing multiple buildings, order of spawn, adding dynamic events.

Lake & Pump

After sculpting the landscape, the level designer must configure the water data of the level.

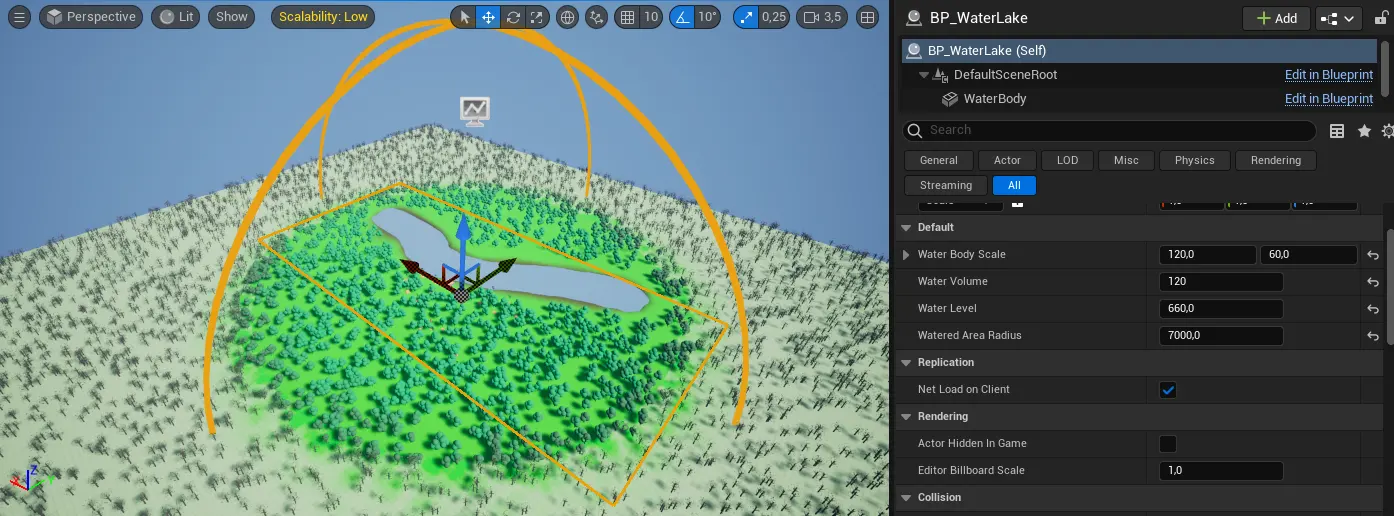

Solution: I created a "Water Lake" actor that controls this data, allowing the designer to setup: its volume, scale and level (water height).

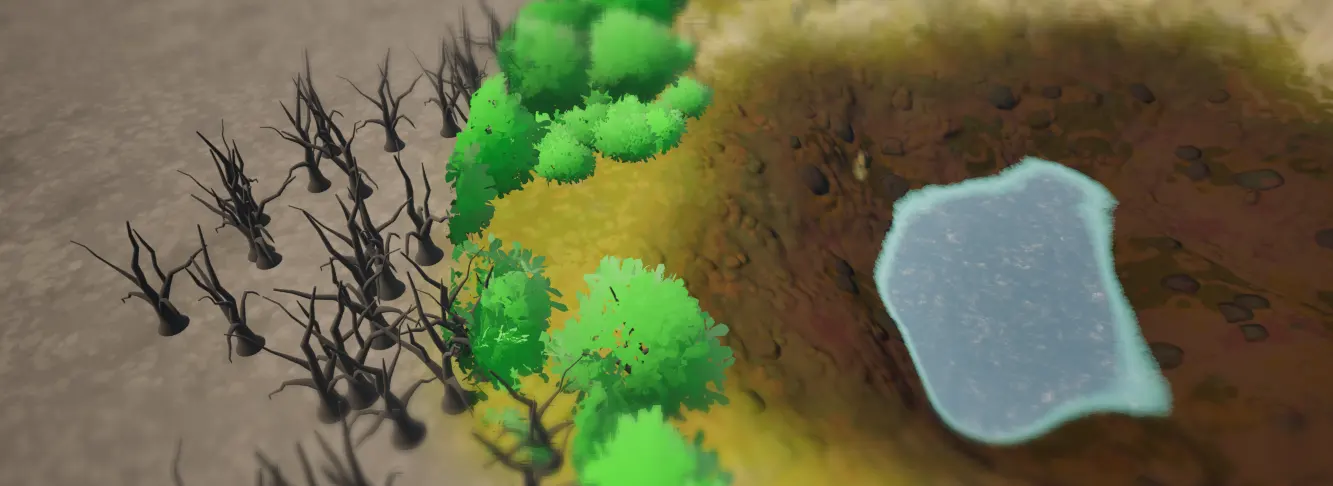

The Water Area Radius interacts dynamically with landscape textures and foliage, making them "dry" when water is depleted.

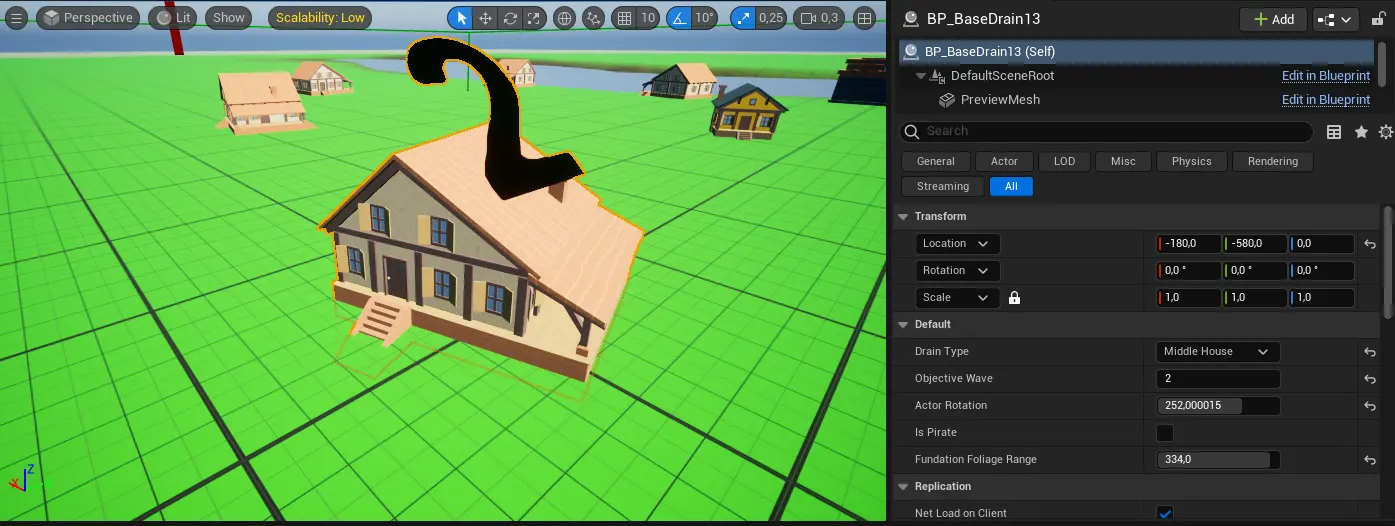

Houses & Dynamic Obstacles

Solution: To streamline the workflow, I set up actors that allow designer to:

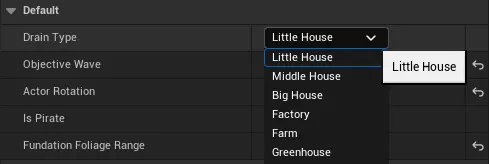

  • Define house/obstacle types via a choice list
  • Set predefined spawn orders

The spawn order ensures buildings and obstacles appear in a designated sequence during rounds.

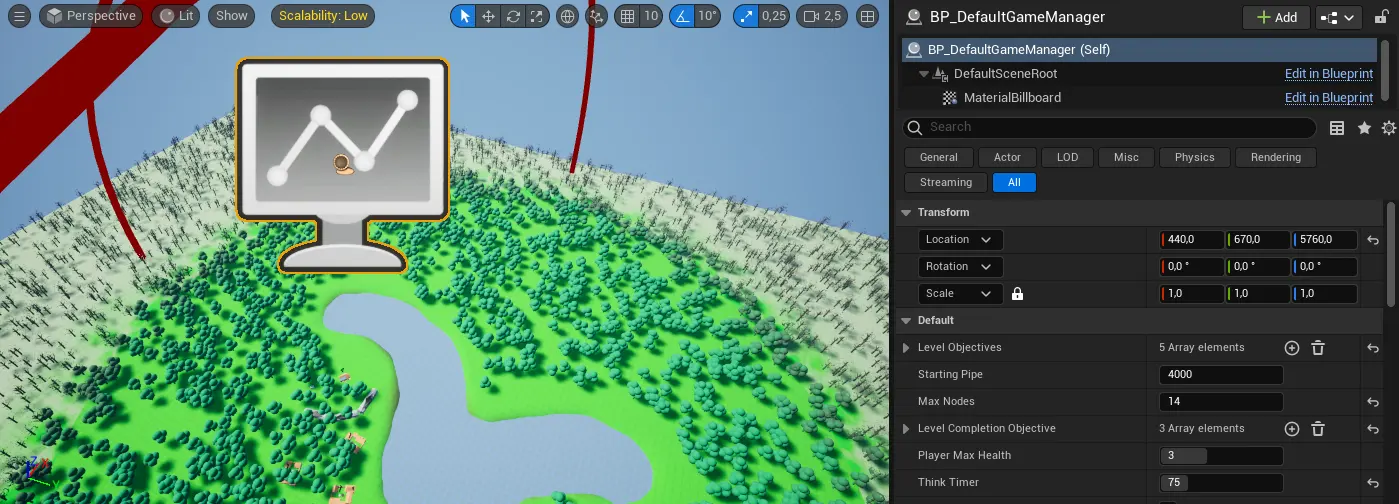

Level - Game Manager

Problem: Designers need to test level rules variables quickly without manually editing Blueprints.

Solution: I created a "Game Manager" for each level that:

  • Handles level rules
  • Manages a list of objectives (rounds) set by designers

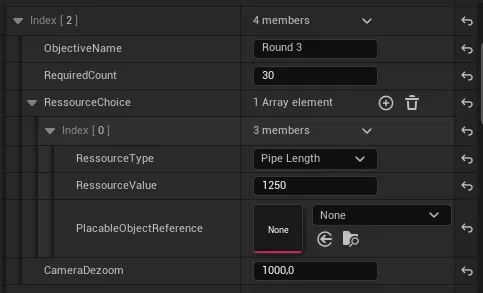

The Designer inside the level objectives array can set the resources given to the player during each new rounds. We used to manually setup the required count (score given by connected houses) to access the next round, it is now calculated automatically based on the house's round index.

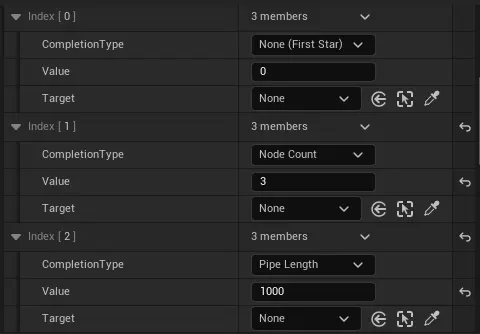

The "Completion Objectives" system lets designers define goals for earning stars at the end of a level such as:

  • Keeping a minimum pipe length inside the inventory
  • Connecting a specific building to the water network
  • Not exceeding a certain number of connections

III. Shader

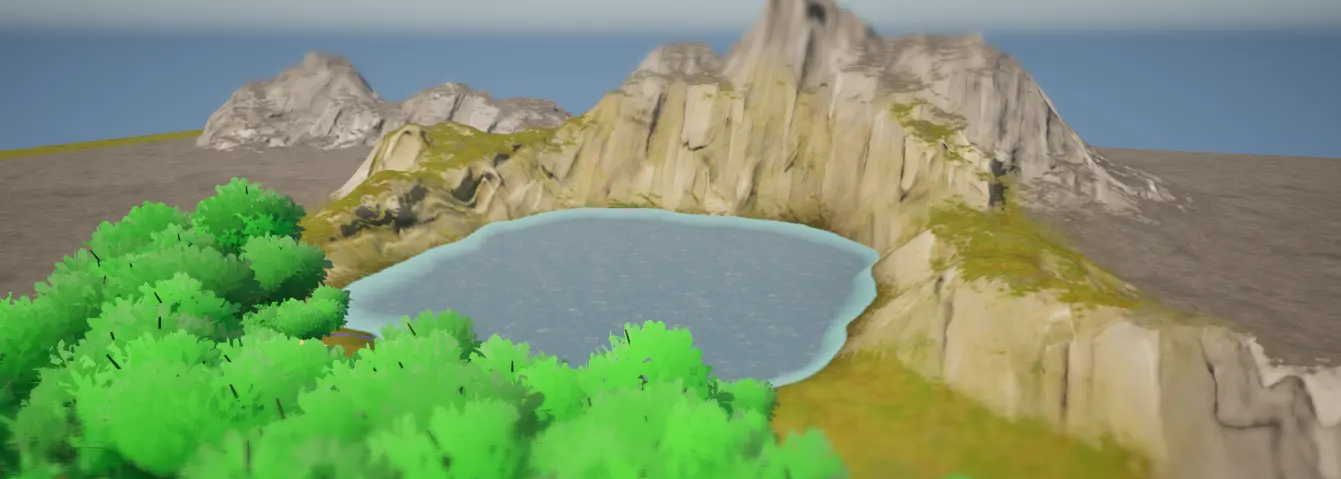

I wrote an automatic landscape to eliminate tedious manual painting, as none of us had strong painting skills.

Runtime Virtual Texture

Since automatic landscape painting is GPU-intensive, I used Runtime Virtual Texture to optimize performance.

Problem: This broke my previous "drying" effect since the shader forced a "static" texture.

Solution: I replaced the shader code with a cheap decal material, which desaturates the landscape Virtual Texture data, restoring and even improving the drying effect.

Other Shaders

As the automatic landscape painting shader is heavy, I've used Runtime Virtual Texture to make it cheaper for the GPUs.

Problem: Houses needed visual feedback for their automatic connection

Solution: I created a decal shader that:

  • Displays houses' maximum range for pipe connection
  • Attaches to a sphere collider for dynamic control by designers via float values

IV. Custom Plugin

I wrote a C++ plugin while keeping the project Blueprint Only, reducing project size and preventing designers from needing manual recompilation (or setting up UnrealGameSync).

Windows Viewport Control

Problem: Unreal Engine always opens game on Primary Screen, opening the windows at an undesired location or resolution.

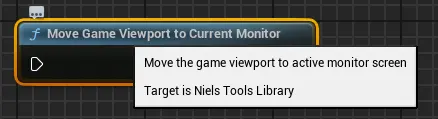

Solution: I' created a node with an algorithm that:

  • Detects the monitor the mouse is on
  • Retrieves its resolution
  • Moves and resizes the game viewport accordingly

Bonus: I added an event handler to resize the window to the current monitor resolution when moved manually (or via Win + Arrow keys).

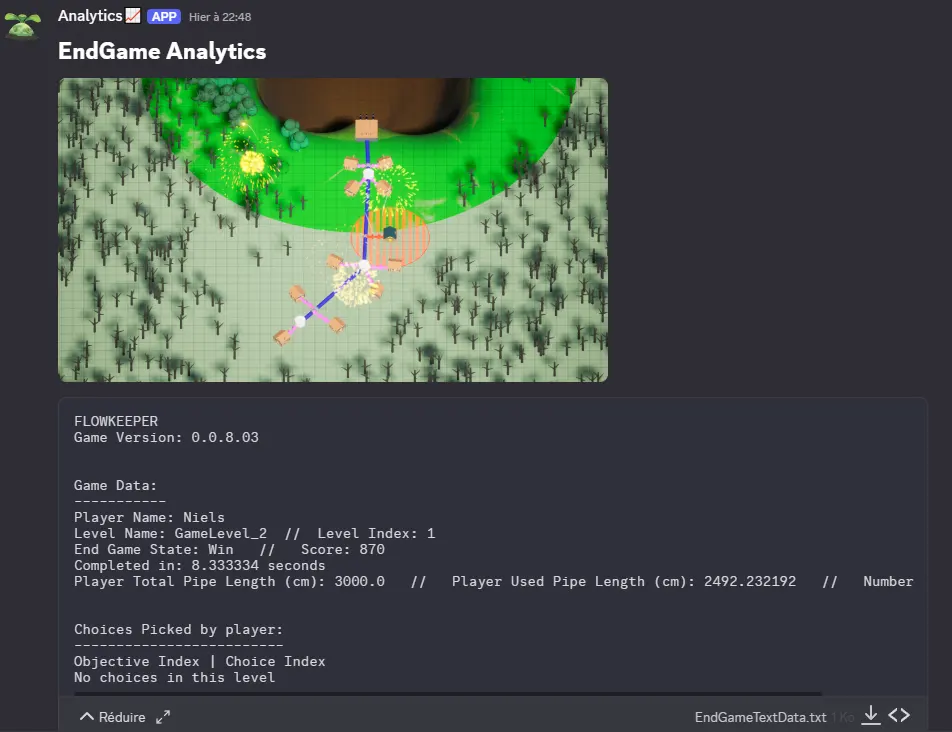

Discord Analytics

Problem: Needed quick and easy analytics from playtests.

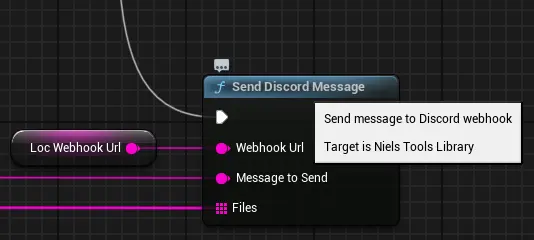

Solution: I wrote a Blueprint node (later expanded with Blueprint Libraries) to send gameplay analytics to a Discord server via webhooks.

  • 3 Webhook channels: Analytics, Bug Reports, and Feedback
  • Supports file attachments: PNG, JPG, GIF, TXT, CSV and Unreal Save (.sav) files

Getting player save files via bug reports interface allows valuable debugging and analytics. I considered developing a separate tool to scan save files, extract player data, and generate statistics.

Safe File Management

While gathering Analytics, I wanted to be able to have the player end screen to directly save the path he did to complete the level, which is a valuable data for the team.

In order to keep the player's memory low, I've wrote a blueprint node used to safely delete file if they exist on the game's save folder: which allow me to make a screenshot of the player's viewport and delete it after the analytics being sent.

V. Water Network - Chain Reaction

This was the hardest part of the project, requiring multiple iterations. The final approach is a chain reaction system.

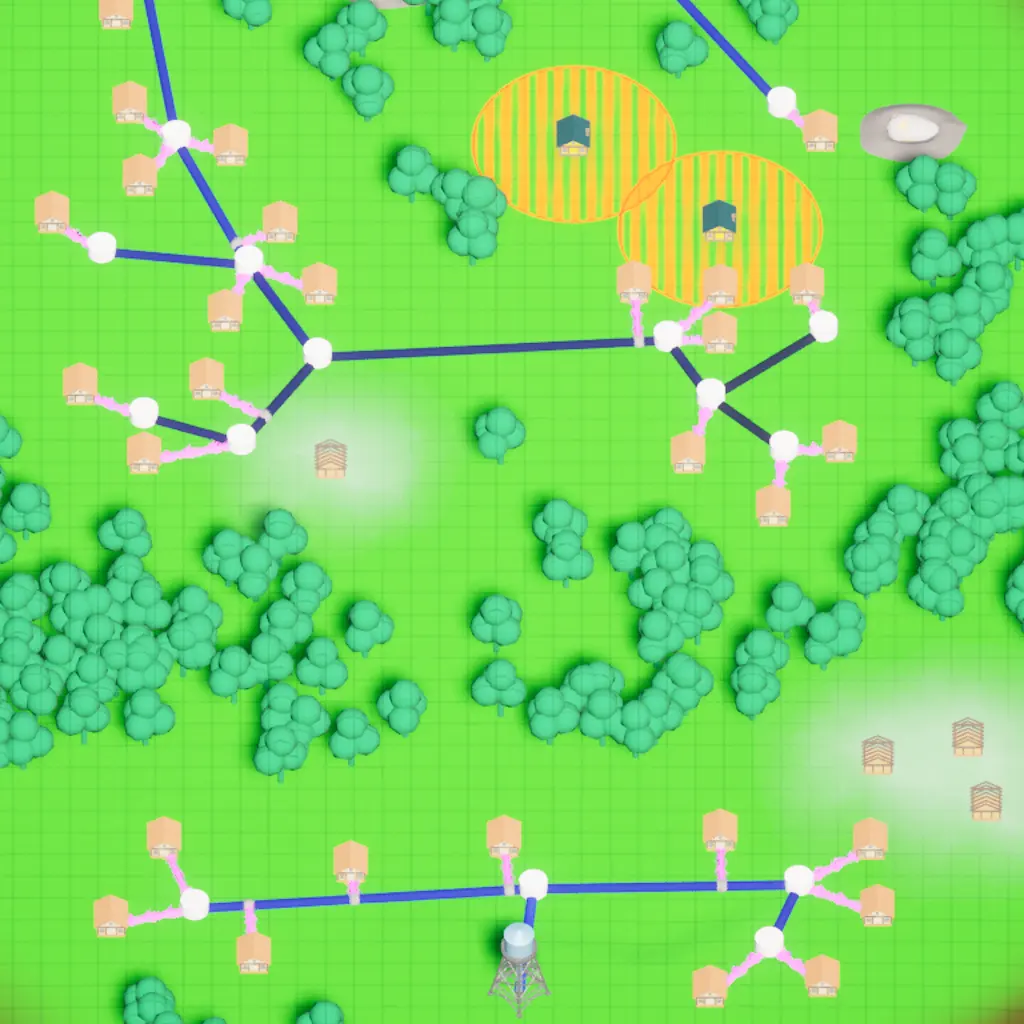

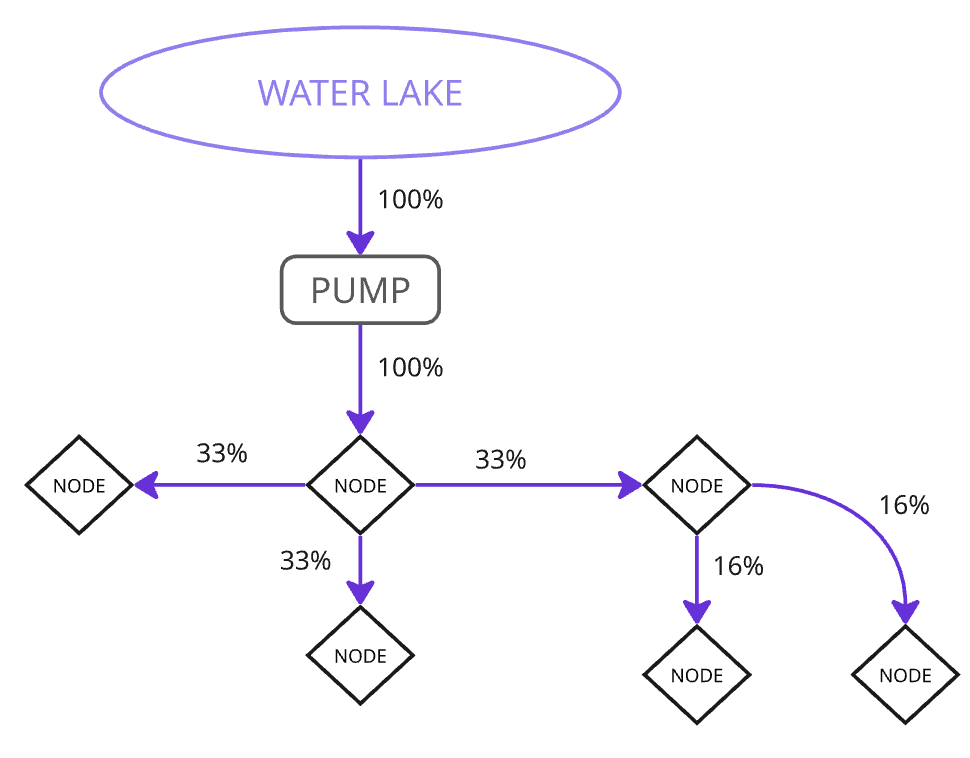

Overview

  • Pumps extract water from the Water Lake
  • Connected pipes distribute water to Nodes
  • Node split water among their outputs
  • Chain reaction continues until no water remains (or reach the end of the branch)

Houses automatically connect to the nearest pipe and consume water during the "Processing Water" phase of the pipe.

To align with the puzzle gameplay, I retained the chain reaction system but forced 100% water transfer to each section, with only house consumption affecting the Water Lake volume (used for score calculation); as water depletion wasn't a core mechanic in the puzzle gameplay.

VI. Other Programming Tasks

I handled many additional tasks, summarized here:

  • Save System with Version Control to prevent data corruption
  • End Game system with score calculation based on player actions
  • PlayFab API integration for Leaderboards
  • Shaders: Flowing Pipes, Ghost Buildings (for building placement previews), Water, Editor Billboards, and Outlines.
  • Pipe Drag & Drop Player Controller with Orthographic Camera
  • String Table setup for fast & easy localization
  • Settings Menu: Game (Reset & Unlock All Levels), Video (Detailed Settings), Audio (Music & SFX) & Privacy Settings (Change Player name & Allow Analytics).
  • Shader Pre-compilation: custom loading screen to force the pre-compilation (I haven't learned PSO yet)
  • Setup of the whole project parameters (Rendering, packaging, ...)
  • Setup of the Perforce Server & Source control, and Unreal for collaboration.
